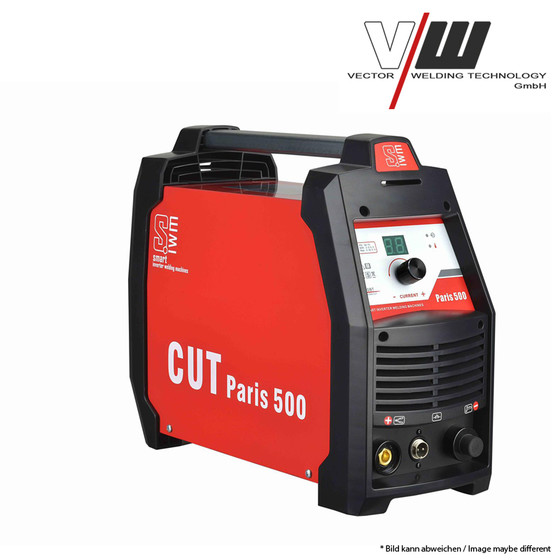

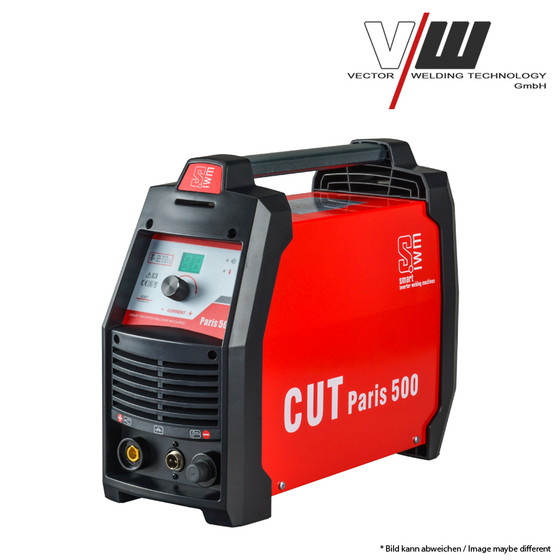

Descript of VECTOR PLASMASCHNEIDER PARIS 500 PROFI PLASMA CUT 50A IGBT | HF ZÜNDUNG | 14 MM | KONTAKTZÜNDUNG+ Verschleißteile
Important functions & device information at a glance
Paris 500 | ![]() | ||
Quick | Industrial Application: Home workshops Metal workshops Light fabrication Repair and maintenance | For These materials: Mild Steel Brass Stainless Steel Copper Aluminum Processes:Plasma cutting | Input Power: 230V, 1-Phase Amperage Range: 20-50A Rated Output at 40 C (104 F): 50A at 100V @ 30% Duty Cycle Weight: 7 KG |
The heavy duty plasma cutting power source |
The CUT-Paris500 is designed from the base of full digital control system,specifically for the handyman or tradesman that requires high quality cutting performance at an affordable price. This single phase inverter based power source can easily and accurately cut through a range of materials including mild/stainless steel and aluminum. It is ideal for applications including car panels, light maintenance or fabrication and for use in the home workshop. Powerful with heavy duty cycle of 40% at 40A, the maximum output. CUT-Paris500: Non-HF ignition with Trafimet S45 torch or Parker SCP 40 ensures the excellent cutting performance. The CUT-Paris500 also could be ordered with PFC system. The CUT-Paris500 Air plasma cutting system is portable and easy to achieve precise cutting. The CUT-Paris500 plasma cutting systems are portable enough to carry to any jobsite. Hook up the compressed air, grab the torchand start cutting right away. |
Specialist Features | |
♦ Pilot Arc for superior arc performance and easy start. HF or Non-HF Arc | ![]() |
♦ ignition: reliable plasma arc initiation without high frequency. | |
♦ Continuous Output Control: focus the arc for different material thickness. | |
♦ Rapid Arc Restrike: fast cutting through gaps, even expanded metal. | |
♦ Powerful with heavy duty: 40A @40%. | |
♦ Recommended 10mm quality cut capacity (0.5 m/min, with optional torch). | |
♦ Light weight and super portable. | |
♦ Generator power supply friendly. | |
♦ Auto-reconnects for single phase 115/230V 50/60 Hz input allows the flexibility to work in the shop or take in the field where 230V may not be available. | |
♦ Weight around 13 kg making it easy to carry around the workplace . | |
Outstanding Quality: |
♦ Newly designed using the latest power electronic technology for improved reliability. |
♦ CE Certified. |
♦ 2 Years Warranty on parts , 5 Years Warranty on Transformer |
Technical specifications
Description | SIWM DIGITAL Paris500 |
Weight | 7 kg |
Power Source Dimensions | L380mm x W160mm x H320mm |
Cooling | Fan Cooled |
Welder Type | Inverter Power Source |
European Standards | EN 60974-1 / IEC 60974-1 |
Number of Phases | 1 |
Nominal Supply Voltage | 230V +/- 15% |
Nominal Supply Frequency | 50/60Hz |
Welding Current Range (CUT Mode) | 20 - 50A |
Effective Input Current /STICK /TIG | 18.6A |
Maximum Input Current/STICK/ TIG | 37.2A |
Single Phase Generator Requirement | 9.9KVA |
WeldingOutput,40oC,10min. | 50 A @ 40%,100V / 27.4A @ 100%,91V |
Open circuit voltage | 73V DC / Plasma 265V DC |
Protection Class | IP23 |

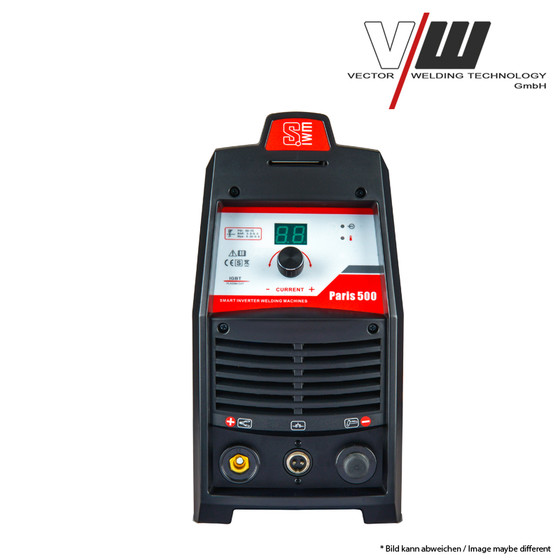

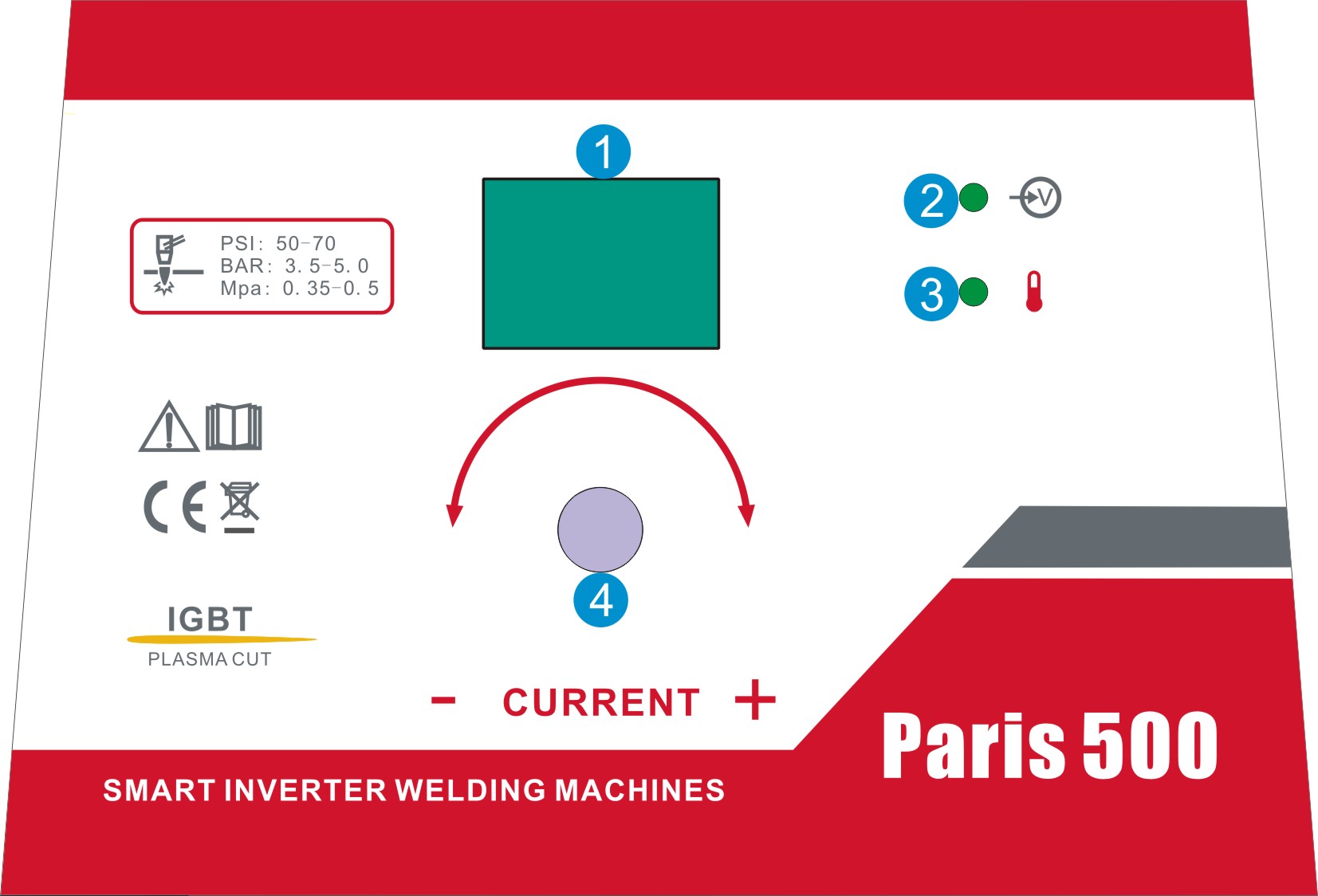

General View of Control Panel |
Control Panel Parameter Values | ||
1. Digital Display 2. Power Indicator 3. Thermal Overload Indicatorr 4.Positive Control- Negative Control |
Steel Cutting Capability (Thickness to scale.) | |
Capacity | Thickness |
cutting | |
Quality Cutting Capacity (Hand-held) | 8mm |
Max Cutting Capacity (Hand-held) | 12mm |

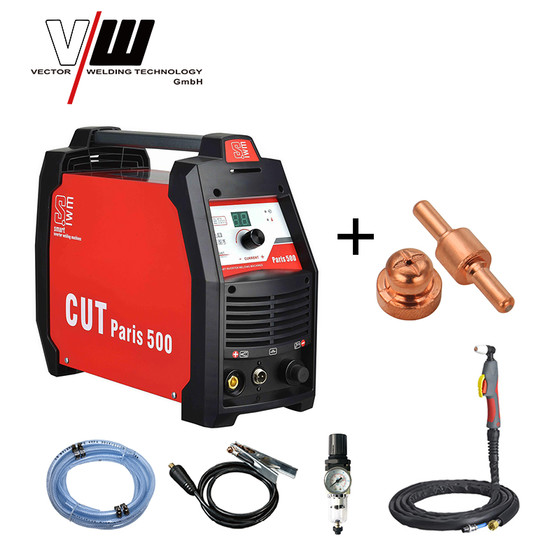

Accessories | |||
For Standard accessories | For Optional accessories | ||

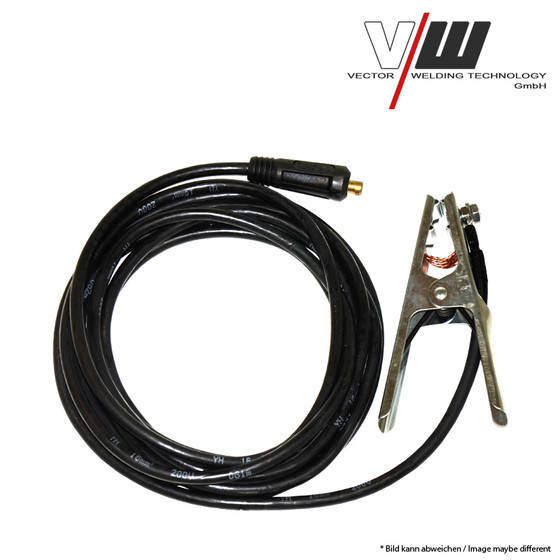

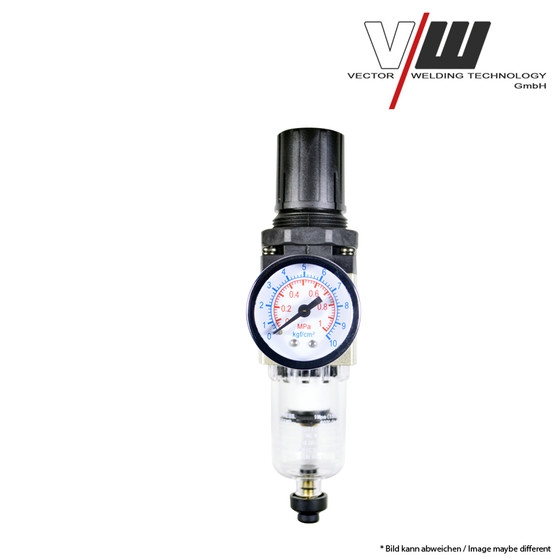

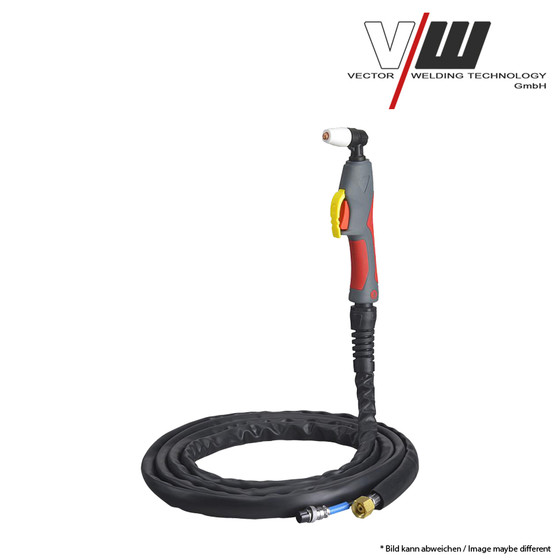

PLASMA torch: PT31 Current: 40 Amp Duty Cycle: 60% Gas: AIR/N2 Gas Pressure: 4.5-5.0 Bar Gas Flow: 100 LPM Ignition: Without HF Post Flow: 35 sec.recommended Standard Length: 4M | Electrode holder with cable 2,5M | Air regulator AW2000 | Brand:PARKER PLASMA torch: SCP 40 Cooling Method: Air-Cooled Rating: 40A Cutting Thickness: 8-12mm Duty Cycle: 60% Gas: Air/N2 Gas Pressure: 4.5-5.0 bar 65-75 psi Gas Flow: 100 l/min 210 scfh Pilot: Electrode to Tip Ignition: Back Striking Without HF Post Flow: 90 sec |
Shipping weight: | 8,11 Kg |
Product weight: | 7,02 Kg |
