VECTOR Digital Welding machine MIG MAG R231 Inverter TIG ARC MMA STICK Electrode 5KG
DC, MIG MAG 200 A, WIG Lift-TIG, MMA, IGBT
PDF list
- Garantiebestimmungen: click there to view details.
- VectorDigital product catalogue: click there to view details.
- Data sheet: click there to view details.
- Bedienungsanleitung: click there to view details.
- Technical Details: click there to view details.
- Warranty conditions: click there to view details.
Descript of VECTOR Digital Welding machine MIG MAG R231 Inverter TIG ARC MMA STICK Electrode 5KG
Full digital control system for a nice Arc performance, very few spatters.
We designed and built the MIG-R221 based on the full digital control system,accompanied with simple operation panel and easy way to use even if without any experience. The short-circuit cycle is very clear, the peak short-circuit current is strong, there is very few spatters. Especially for the thin plate welding jobs, it seems nearly no spatters during the welding.With the features of powerful peak current and dynamic control system, the MIG-R221 is portable but with heavy duty.
Important functions & device information at a glance
Specialist Features:
♦ Full digitized control system, new energy efficient IGBT inverter power source, very simple and friendly operations.
♦ Very clear wire melting drop transfer, very few spatters
♦ Powerful peak current confirms deep penetration and wide welding capacity.
♦ Dynamic control with a push of a button.
♦ Fast, precise, clean arc ignition to ensure the sccess ratio and arc ending.
♦ Weights at a mere 14 kg making it easy to carry around the shop or job site.
| Technical specifications | |
| Output current MIG MAG | 30-200 A |
| Output current TIG (Lift-TIG) | 10-200 A |
| Output current MMA / ARC | 10-170 A |
| Duty cycle MIG MAG | 35% at 200 A |
| Duty cycle TIG | 35% at 200 A |
| Duty cycle MMA / ARC | 35% at 170 A |
| Open circuit voltage | 56 V |
| protection class | IP23S |
| insulation class | F |
| input voltage | 230 V AC (+-15%) / 1 ~ |
| input frequency | 50/60 Hz |
| To be secured with min. | 16 A |
| Maximum input current | 24 A |
| Maximum input power | 6,2 kVA |
| Recommended generator power | > 8 kVA / 1 ~ |
| Weight | 14,8 kg |
| Size L x W x H mm without handle | |
| Size L x W x H mm with handle | |
| Power plug type | SchuKo type CEE 7/7 |
| standardize | IEC 60 974-1 ; CE ; |
| Scope of delivery | |
| MIG MAG accessories | MIG MAG welding torch MB15 3 meters |
| 4 MIG MAG power nozzles | |
| 1 MIG MAG gas nozzle | |
| 1 assembly key | |
| TIG accessories | TIG welding torch "WP-26" 4.5 meters |
| 4 gas nozzles. Sizes: 4, 5, 6, 7 | |
| 4 clamping sleeves. Size 1.6 and 2.4 | |
| 4 clamping sleeve housing. Size 1.6 and 2.4 | |
| Torch cap - one short and one long each | |

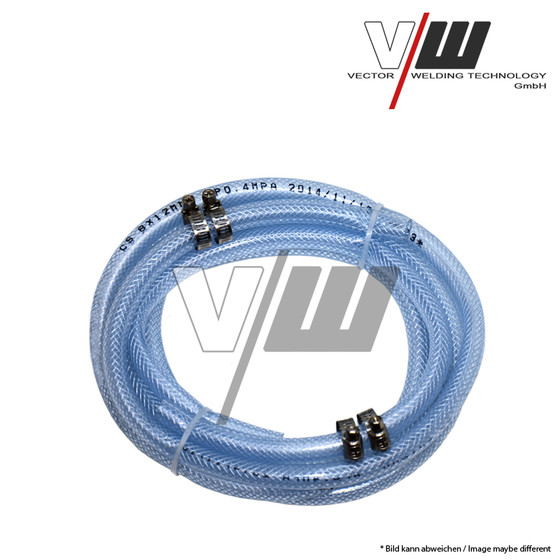

| miscellaneous | Gas fabric connection hose: 3 m |
| Ground cable 3 meters | |
| Electrode holder 3 meters | |
